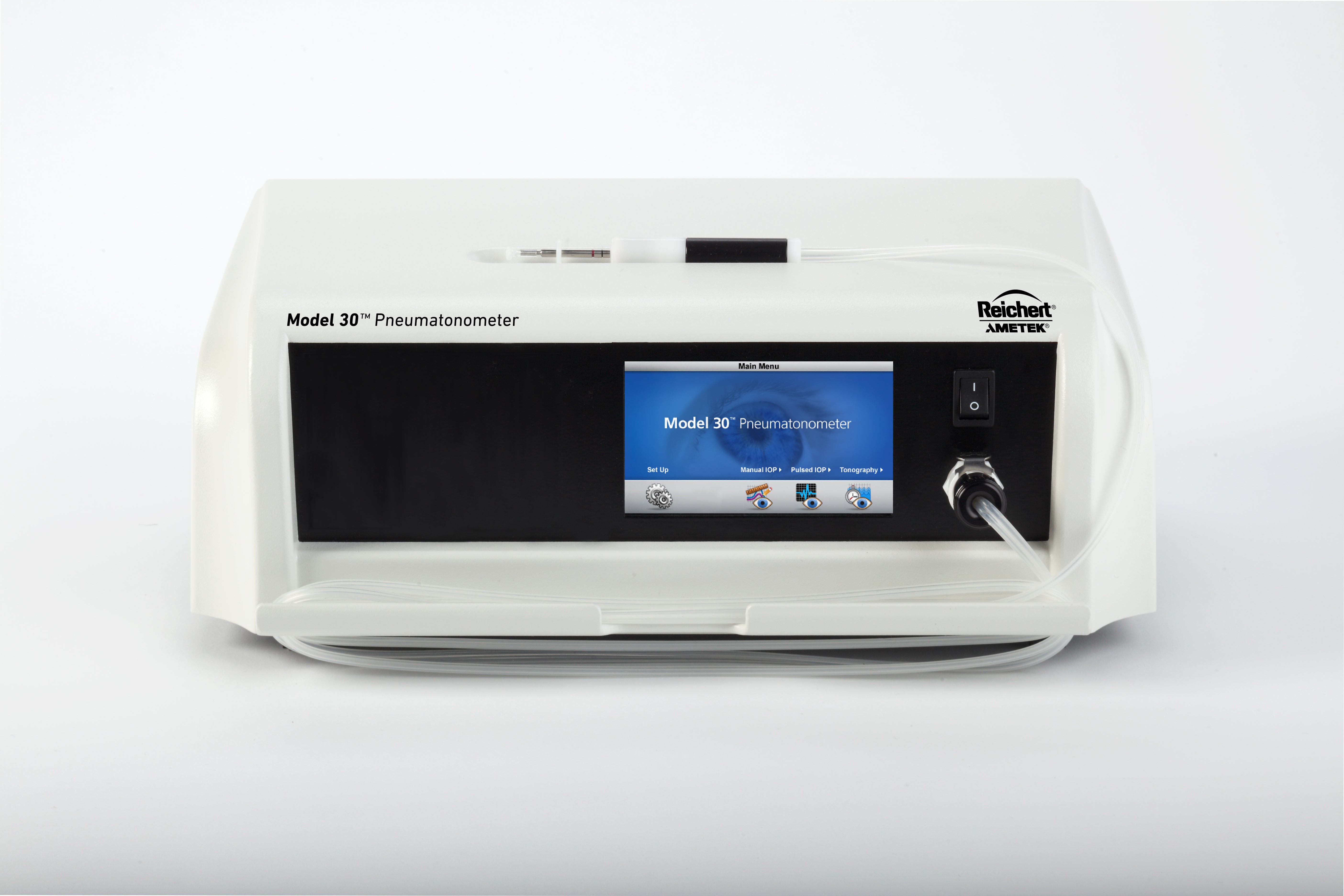

Model 30 Pneumatonometer by Reichert®

Additional Information

Product Brochure, Instructions for Use, Cleaning Instructions

Easy to Use
Doctors and technicians agree that the Model 30 Pneumatonometer is easy to use. The all-new touch screen interface features an easy-to-use icon-based operating system enabling even inexperienced users to make measurements in seconds. The full color display guides the operator through the measurement process and displays readings. The optional footswitch (available with the tonography kit - catalog number 16033) makes obtaining measurements even easier, freeing the operator to concentrate on handling the sensor probe. The optional Model 30 Pneumatonometer PC Software enables data to easily be transferred to a PC.

Multi-Modality
The Model 30 Pneumatonometer provides ocular pulse amplitude measurements in addition to tonometry measurements. The optional tonography mode enables measurement of the aqueous outflow efficiency of the trabecular meshwork.

Clinically Trusted
The Model 30 Pneumatonometer is trusted worldwide and is frequently the instrument of choice of specialists and researchers. Research indicates that measurements obtained with the Model 30 Pneumatonometer are less affected by corneal properties than other methods of tonometry.

Product Specifications

Weight: 8.5 lbs., 3.83 kg
Height: 5.25 in., 13.3 cm
Width: 14.0 in., 35.6 cm
Depth: 10.5 in., 26.7 cm

Power: 100 V or 120 V

Air Pump: 14 PSI, 3,000 hour life

Probe: Pneumatic

IOP Range: 5-80 mmHg

Please note the Model 30 Pneumatonometer is not CE marked and may not be registered for sale in all countries. Please check with your local distributor for availability.
